USB-FC-30AA
New

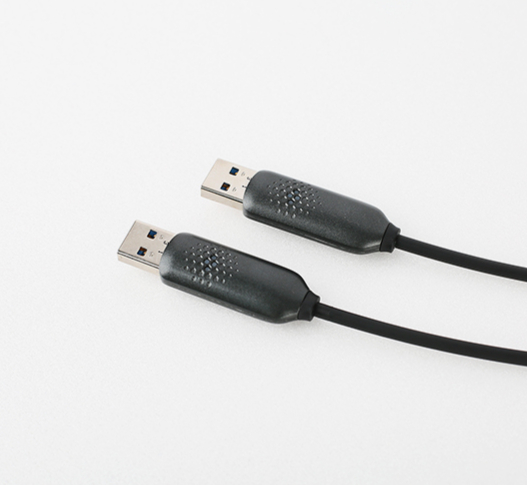

USB-FC30AA Hybrid USB 3.0 Fiber Extender — Long-Distance, Bi-Directional, A-to-A

Item #: USB-FC30AA-10
Price: US$315.00
    The product is in stock Availability: In Stock
    Usually ships In Today before 1:30pm PST


    Update price

    About This Item

    The USB-FC30AA is an active optical cable that can transmit USB 3.0 data up to 100 meters (328 feet).

    It achieves this by using a hybrid cable that combines optical fiber and copper wire.

    The cable is compatible with USB 3.0 standards and offers a SuperSpeed USB 5Gbps data rate.

    The USB-FC30AA has a TX/RX insensitive design, meaning users do not need to distinguish between the transmitter and receiver sides.

    The cable comes with a USB A to A plug configuration, and a USB A to B adapter is included for connecting to devices with a USB B port.

    No software installation is required to use the cable; it's plug-and-play.

    The Opticis USB extension cable, model USB-FC30AA, enables USB data transmission over distances up to 100 meters (328 feet) without the need for repeaters. This solution offers a streamlined method for extending USB devices far from the host system. Utilizing advanced VCSEL and photodetector (PD) technology, the USB-FC30AA supports secure and reliable data transmission with high cost efficiency through the use of hybrid fiber cabling. For proper operation, connected devices must be self-powered.

    The USB-FC30AA features A-plug to A-plug connectors. To enhance cost-effectiveness, it employs a hybrid fiber cable with integrated electrical wiring instead of pure optical fiber, while still meeting Plenum grade standards. This makes it ideal for installations where AC power is unavailable near the connected device. Additionally, its bi-directional transmission capability allows users to avoid distinguishing between TX and RX sides, simplifying installation and use.

    Optional accessories include a 15cm A-to-B copper cable and a locking housing, which can be used with Type B devices such as cameras or USB hubs.

    • Compatible with USB 3.0 standards
    • Transmits USB 3.0 data to 100m (328 feet) over hybrid cable.
    • TX / RX insensitive design (two-way port)
    • SuperSpeed USB 5Gbps data rate
    • Adopts plenum graded UL hybrid cable
    • Operated by 5V source power
    • USB 3.0 A plug to A type plug
    • No software installation required: Plug and Play

    What is USB-FC30AA?

    USB-FC30AA is a USB 3.0 active optical cable that extends USB data transmission up to 100 meters (328 feet) without needing a repeater. It offers a simple solution for connecting USB devices located far from the host computer.

    What is the maximum data transfer rate of USB-FC30AA?

    USB-FC30AA supports SuperSpeed USB with a data rate of up to 5Gbps.

    What type of cable does USB-FC30AA use?

    USB-FC30AA utilizes a hybrid cable that combines optical fiber and copper wires. This combination ensures high-speed data transmission while maintaining affordability.

    Does USB-FC30AA require any software installation?

    No, USB-FC30AA is a plug-and-play device, meaning it requires no additional software or drivers for installation.

    Can I connect a USB device with a Type B plug to USB-FC30AA?

    Yes, USB-FC30AA includes a USB A to B adapter cable and a locking housing, allowing you to connect devices with Type B plugs, such as cameras and USB hubs.

    What is the power consumption of USB-FC30AA?

    USB-FC30AA has a power consumption of 2W and operates using the 5V power supplied by the host's USB port.

    Does the connected USB device need to be self-powered?

    Yes, the USB device connected to USB-FC30AA must be self-powered to ensure its normal operation.

    What are some common applications for USB-FC30AA?

    USB-FC30AA proves beneficial in various applications, including:

    • Security and monitoring systems using USB cameras.
    • Conference rooms and control rooms requiring long-distance USB connections.
    • Offices and factories needing extended connections for peripherals.
    • Government and military setups demanding secure and reliable data transfer over long distances.

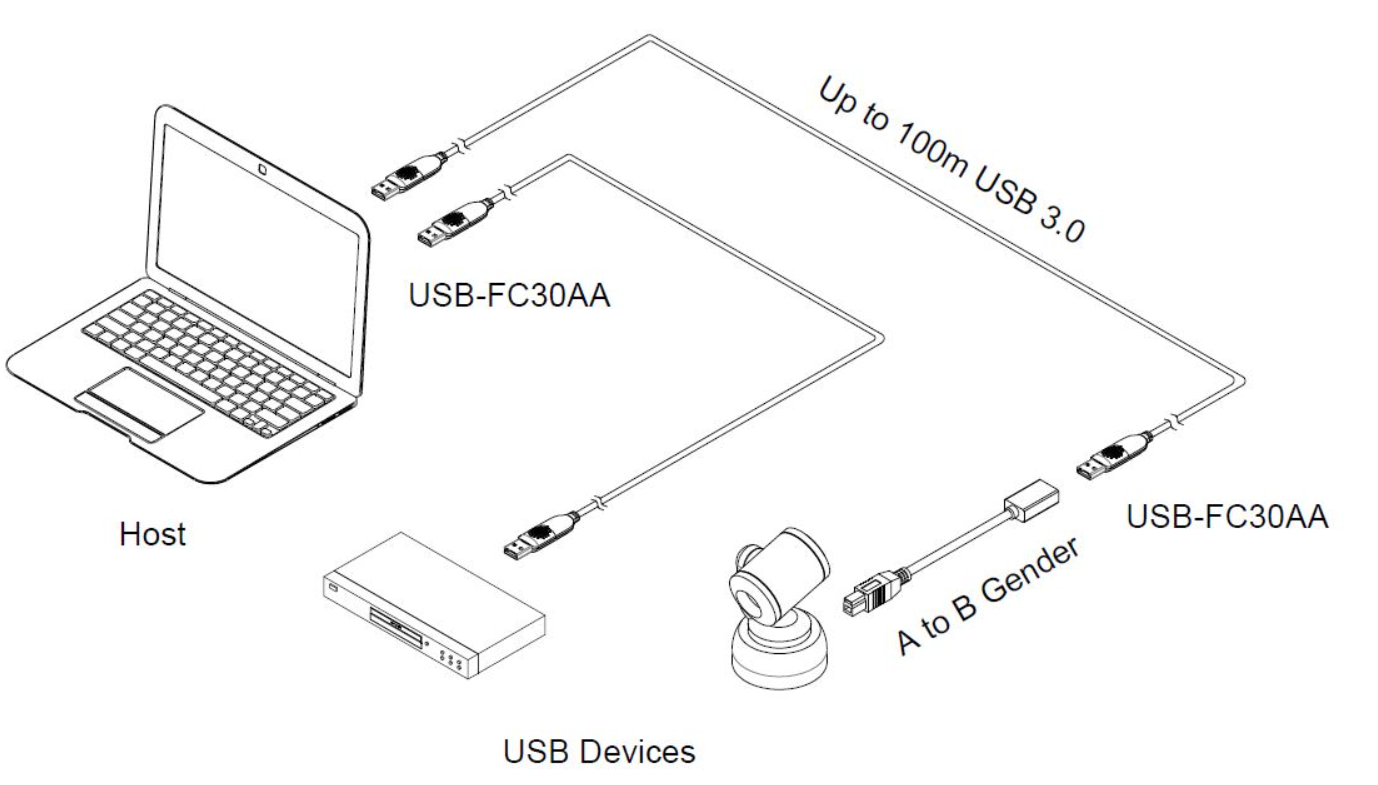

    USB FC30AA Connection Diagram
    1. One (1) USB-FC30AA AOC cable
    2. User’s Manual
    3. USB A to USB B adapter copper cable (15cm)
    4. Locking Housing
