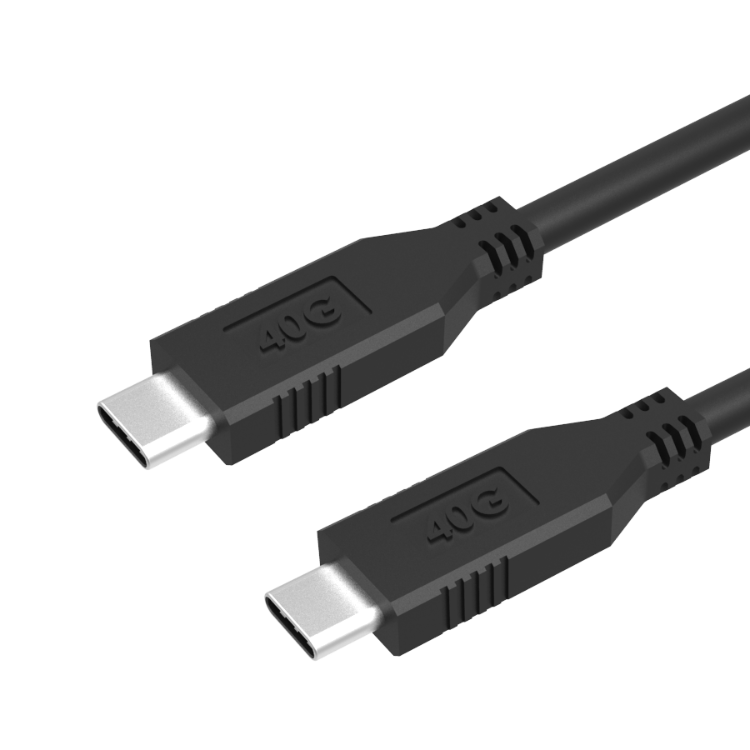

USB4 C to C Cable, M/M, 1m, 80Gbps, EPR 240W, USB-IF Certified

Item #: U4T1C01C01P010
Price: US$59.00
    The product is in stock Availability: In Stock
    Usually ships In Today before 1:30pm PST

    About This Item

    • Data Rate: USB4 Gen 3 signals up to 40Gbps Data Rate
    • Compatibility: Widely compatible with USB 3.x, USB 2.0/1.1 and Thunderbolt 3/4 with USB-C interface
    • Video Display: DP v2.0 Alt Mode over USB-C, 16K@60Hz Max. UHBR 20, 80.0 Gbps, DSC
    • Power Delivery: USB Power Delivery (PD) 3.1 charging support up to 240W that meets EPR specification
    • Enhanced Signal Integrity: Coaxial cable structure, outperforming conventional twisted pair design
    • Shielding: 360 degrees EMI protection that meets USB-IF shielding effectiveness requirements
    • Flexibility: Enhanced flex life, tested to withstand 5 million flex cycles in chain
    • Durability: Ruggedized overmold and reinforced strain relief, providing extended lifespan for industrial settings
    • USB-IF Certified with TID

    Newnex designs and manufactures cables at the cutting edge of the latest USB4 technology. USB 4 cables support data speeds up to 80Gbps and USB Power Delivery up to 240W. They offer reliable performance for high-speed data, power, and video transmission.

    Compatible with USB4, Thunderbolt 3, 4 & 5, USB 3.x, and USB 2.0/1.1 devices, these cables ensure seamless connectivity across various professional and industrial applications. It also supports Display Alt-mode for a display resolution up to 16k following the DisplayPort V2.1 specification.

    Data rate:
    USB4
    Power Delivery:
    240W
    DP Alt-Mode:
    DisplayPort 2.1
    Cable Type:
    Flex

    USB4 Cable Features

    80Gbps Bandwidth
    Transmit USB4 Gen 4 x 2 signals up to 80Gbps Data Rate, also support asymmetric 120Gbps mode.

    16K Display
    Support DisplayPort 2.1 pass-through for resolution up to 16K @60Hz (with DSC).

    240W Charging
    USB Power Delivery (PD) 3.1 charging support up to 240W that meets Extended Power Range (EPR) specification. Read more about USB PD.

    Wide Compatibility
    Widely compatible with USB 3.x, USB 2.0/1.1 and Thunderbolt devices with USB-C interface
    Read more about Thunderbolt vs USB-C.

    USB-IF Certified
    Certified with USB-IF TID to meet the maximum reliability. Learn more about the certification.
