DPC-MP14-TR DisplayPort 1.4 MPO Fiber Optic Extender — 8K 60 Hz, 32.4 Gbps Bandwidth, Zero Latency

The DPC-MP14-TR is a pure optical DisplayPort 1.4 extender engineered for high-performance 8K video transmission in professional AV, broadcasting, and industrial applications. Supporting Display Stream Compression (DSC), it delivers 8K (7680 × 4320) at 60 Hz, with a total bandwidth of 32.4 Gbps (8.1 Gbps per lane). It also supports 5K at 60 Hz and 4K at up to 144 Hz, ensuring exceptional image fidelity for demanding high-resolution workflows.

Extends up to 8K DSC(7680x4320) at 60Hz

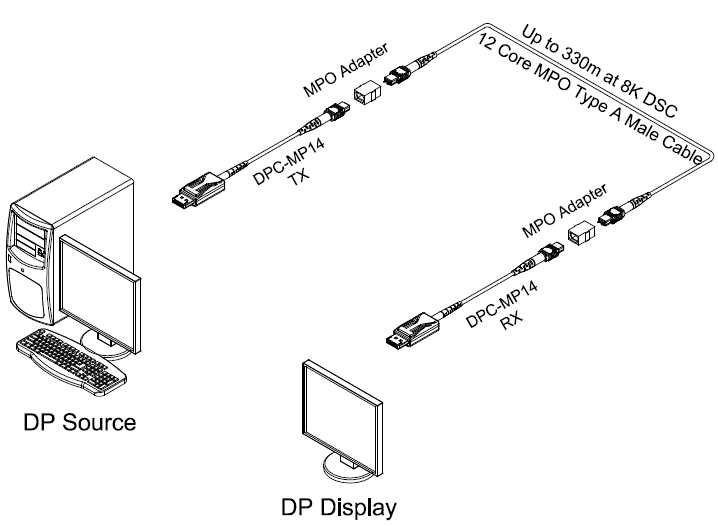

Transmits DisplayPort 1.4 data up to 330m (1,082feet) over MPO cable (OM3)

Supports up to 32.4Gbps bandwidth with 8.1Gbps per lane(HBR3)

Requires to use 12 core multi-mode OM3 Type A male to male MPO cable (Polarity A)

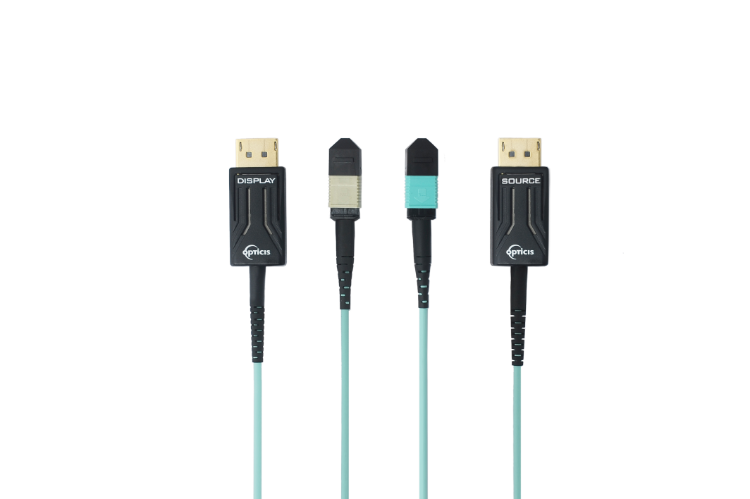

Designed as pigtail type for easy installation

Different color of MPO connectors: TX (Aqua) & RX (Beige)

Operates in a wide range of temperature from -10°C to 60°C

Provides immersive Multi-channel Audio, Dolby true-HD, DTS-HD, Master Audio for theater-quality sound

Data security with negligible EMI emission

Brochure (.pdf)

Data Sheet (.pdf)

User Manual (.pdf)

User Manual

Two MPO Adapters

Two MPO Caps
