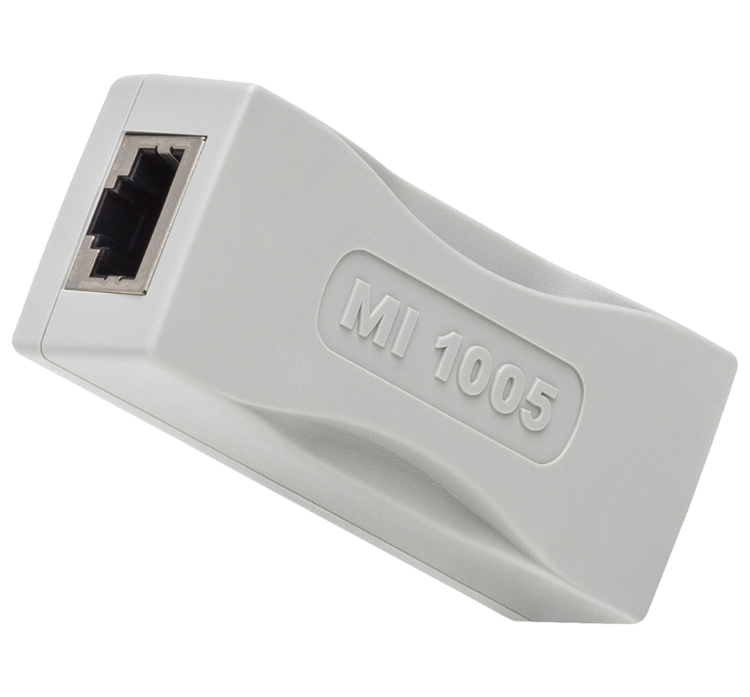

The MI 1005 is used between an active medical device and an Ethernet network or a non-medical device, such as an office PC, printer or laptop. In accordance with the IEC EN 60601-1 standard, devices and systems are safely galvanically isolated. In accordance with the requirements of IEC 60601-1 (edition 3.2), the network isolator MI 1005 has two independent protective measures (2 MOPP) for the patient and is therefore ideally suited for standard-compliant galvanic isolation of Ethernet-based signal interfaces within the patient environment.
The MI 1005 Medical-Grade Network Isolator is designed to protect sensitive equipment and patients from unpredictable currents transmitted through data lines. Fully compliant with IEEE 802.3ab standards, it supports 10/100/1000 Mbit/s Ethernet speeds and provides reliable galvanic isolation for medical and other critical applications.
Certified by the Eurocat Institute in accordance with IEC/EN 60601-1, IEC/EN 60601-1-2, and UL E504923-D1000, the MI 1005 ensures safe operation in environments where electrical isolation is essential. It features a dielectric strength of 5,000V, offering robust protection without compromising data integrity.
This passive device requires no external power supply, drivers, or software. Simply insert it into the existing network cabling for immediate use. The MI 1005 behaves transparently within the data network, ensuring seamless communication without additional configuration.
Constructed from UL94-V0 rated materials, the MI 1005 combines durability and safety, making it ideal for medical facilities and other high-reliability environments. A summary of the official test reports is available upon request.
