M1-3R2VI-DU Dual-Link DVI Optical Extender | 2,000 m Transmission • Self-EDID • LC Fiber • WQXGA 2560×1600 60 Hz

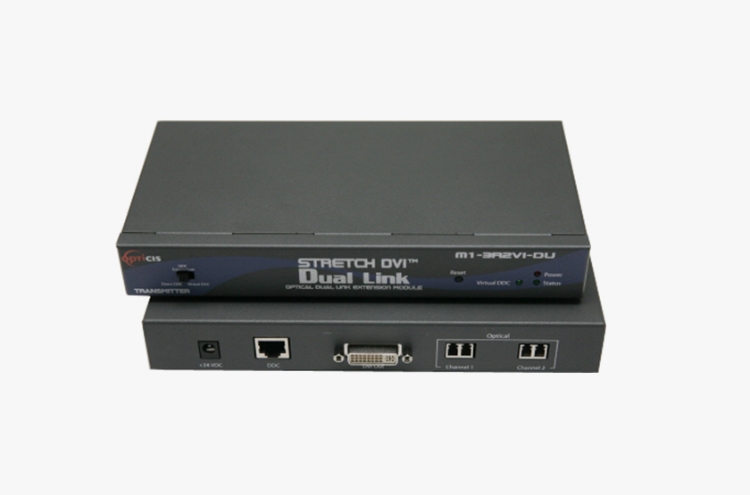

The M1-3R2VI-DU is a detachable dual-link DVI optical extender designed for high-resolution, long-distance digital video transmission. Engineered in a compact box-type form factor, it enables the extension of two TMDS signals carrying uncompressed WQXGA (2560×1600) @ 60 Hz video up to 2,000 m (6,560 ft) over a pair of duplex single-mode fibers, or 500 m (1,640 ft) over duplex multi-mode fibers using LC connectors.

For simplified installation and maximum compatibility, the M1-3R2VI-DU incorporates patent-pending Self-EDID management, which automatically reads and restores display information by simply connecting the transmitter to the display. It fully complies with DDC/HDCP, is CE/FCC certified, and meets Class 1 Laser Eye Safety standards—ensuring reliability and safety in professional environments.

• Easy installation with a pair of duplex fibers

• Reads and restores the targeted EDID in the transmitter (Self-EDID)

• Provides Power, Status (Signal transmission in the transmitter and signal detection in the receiver), LED indicators

• Supports up to WQXGA(2560x1600), 60Hz

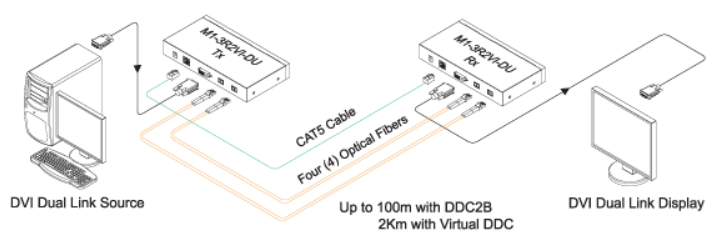

• Extends two (2) TMDS signals with uncompressed WQXGA (2560x1600) 60Hz DVI up to 2,000m (6560feet) over a pair of duplex single-mode fibers and 500m (1640feet) over a pair of multi-mode fibers with LC terminated connector

• Operating temperature: 0 ~ 50℃

• Storage temperature: -30 ~ 70℃

• Input power: +24V 2.5A

• Dimensions (WDH): 216 x 112 x 31mm

• Certifications: CE / FCC, Class 1 Laser Eye Safety
