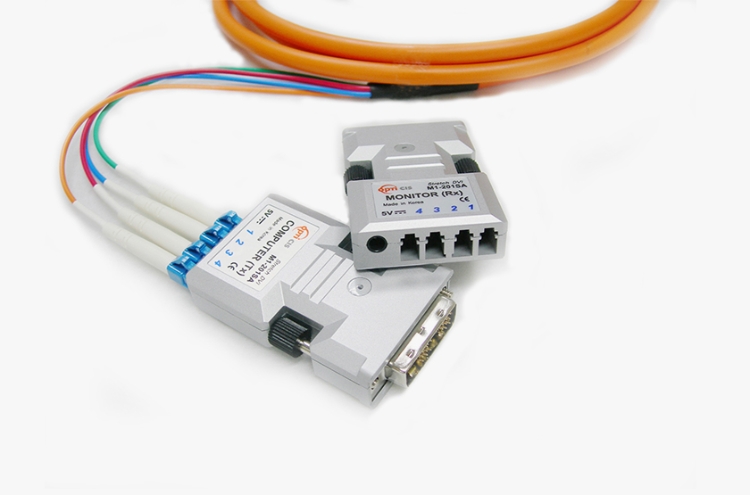

M1-201SA-TR Detachable Fiber-Optic DVI Extender for Medical Displays — WUXGA, 500m Range, EMI-Safe

The M1-201SA-TR detachable DVI extender offers seamless integration with existing systems, requiring minimal effort and no modifications. Its compact design and compatibility with all industry-standard connectors ensure easy installation.

The M1-201SA-TR supports uncompressed WUXGA (1920×1200) at 60Hz, transmitting DVI signals up to 500 meters (1,640 feet) over a pair of duplex LC multi-mode fibers.

For added installation flexibility, it features a patent-pending Self-EDID management function, which reads and restores EDID simply by connecting the transmitter module to the display. The M1-201SA-TR is also certified for a wide range of applications, meeting UL/EN 60601-1, 60601-1-2, FCC, CE, and Class 1 LASER Eye Safety standards.

• Reads and restores the targeted EDID in the transmitter (Self-EDID)
• Provides Power, Status (signal transmission in the transmitter and signal detection in the receiver) LED indicators
• Auto-power switching
• Supports up to WUXGA (1920x1200), 60Hz
• Supports bit rate up to 1.65Gbps/ch
• Uncompressed DVI signal up to 500m (1,640 ft) over a pair of duplex LC multi-mode fiber
• Operating temperature: 0 ~ 50℃
• Storage temperature: -30 ~ 70℃
• Input power: +5V 1A
• Dimensions (W×D×H): 39 × 59 × 15 mm
• Certifications: CE / FCC, UL/EN 60601-1, 60601-1-2, Class 1 Laser Eye Safety

Brochure (.pdf)

Data Sheet (.pdf)

User Manual (.pdf)

User Manual

DC Power Adapter
