HDHF-4K HDMI 2.0 & DisplayPort 1.2 Wall Plate Converter | 4K 60 Hz • 300 m LC Fiber • Multi-Format Optical Extender

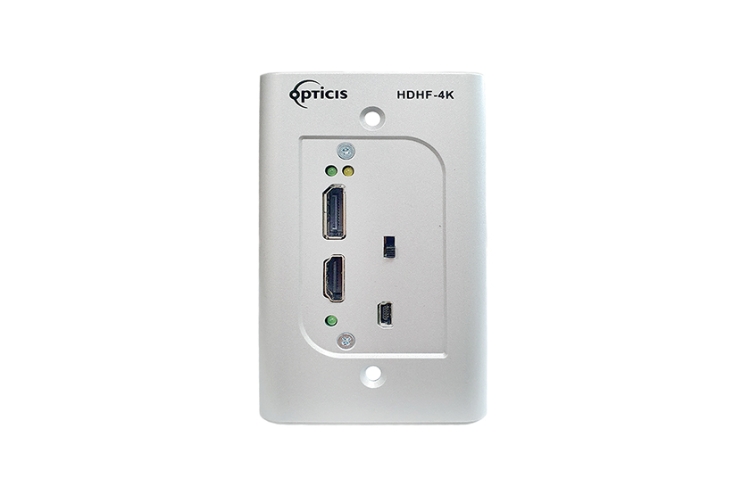

The HDHF-4K is a 1-gang wall plate converter that combines HDMI 2.0 and DisplayPort 1.2 inputs into a single optical HDMI 2.0 output, enabling long-distance, high-quality 4K signal extension. Compact yet powerful, it fits seamlessly into standard wall plates, making it ideal for professional AV and medical installations where clean integration and performance are essential.

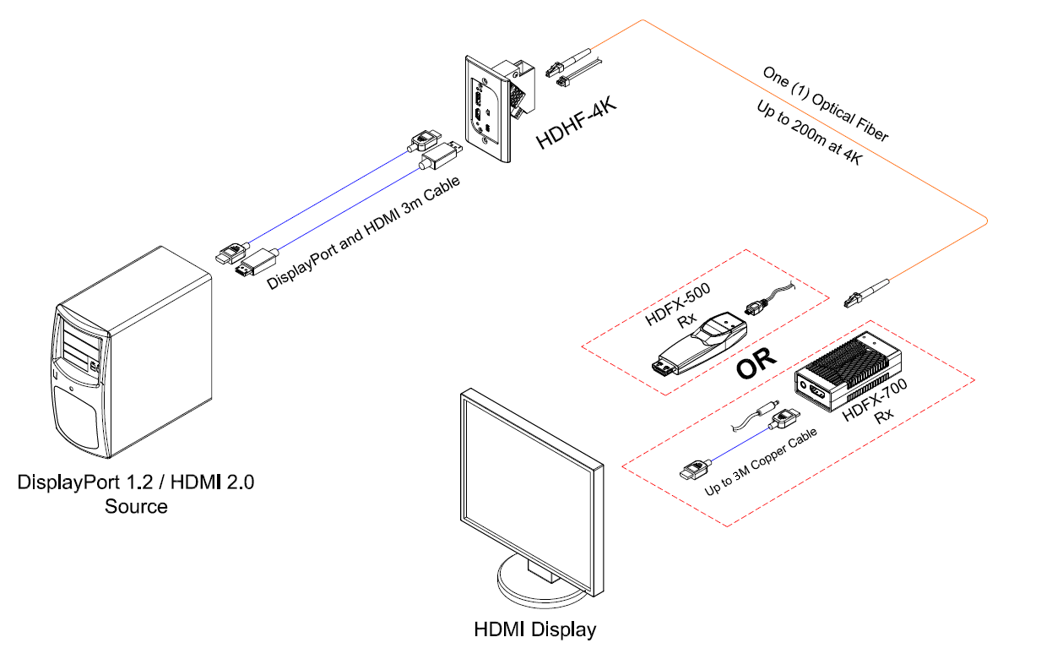

The HDHF-4K converts and transmits 4K (4096 × 2160) at 60 Hz (RGB & YCbCr 4:4:4) up to 300 m (984 ft) over a single LC OM3 multimode fiber, without compression or latency. At the display end, a HDFX-500-RX or HDFX-700-RX receiver restores the optical HDMI signal to electrical HDMI for display output.

Installation is simple thanks to its DIP switch input selection for HDMI or DisplayPort, eliminating the need for separate converters. Three integrated LED indicators provide quick visual status for power, HDMI, and DisplayPort signal detection.

• Converts HDMI 2.0 and DisplayPort 1.2 inputs into optical HDMI 2.0 output
• Supports up to 4K (4096 × 2160) at 60 Hz, RGB & YCbCr 4:4:4
• Transmits converted optical signals up to 300 m (984 ft) over one LC OM3 multimode fiber
• DIP switch for quick input selection between HDMI and DisplayPort
• Three LED indicators for power and input signal status
• Compact 1-gang wall plate form factor for clean installations
• Compatible with HDFX-500-RX and HDFX-700-RX receivers for signal recovery
