HDHF-1F20 HDMI 2.0 Fiber Optic Wall Plate Extender | 4K 60 Hz • 300 m LC Fiber • HDCP 2.2

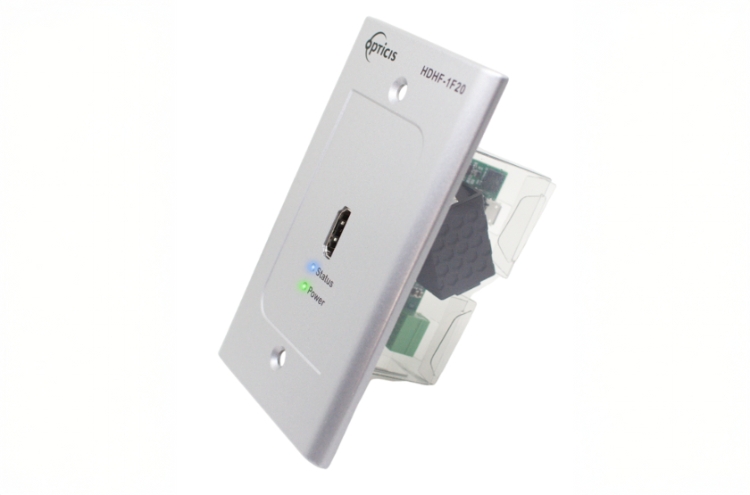

The HDHF-1F20 is a high-performance HDMI 2.0 optical extender built into a standard single-gang wall plate, making it an elegant and space-efficient solution for professional AV and medical environments that require long-distance, uncompressed 4K video transmission.

Supporting 4K (4096 × 2160), WQUXGA @ 60 Hz (RGB & YCbCr 4:4:4), the HDHF-1F20 transmits HDMI 2.0 signals up to 300 m (984 ft) over a single LC OM3 multimode fiber, with zero compression and zero latency to ensure pristine image quality.

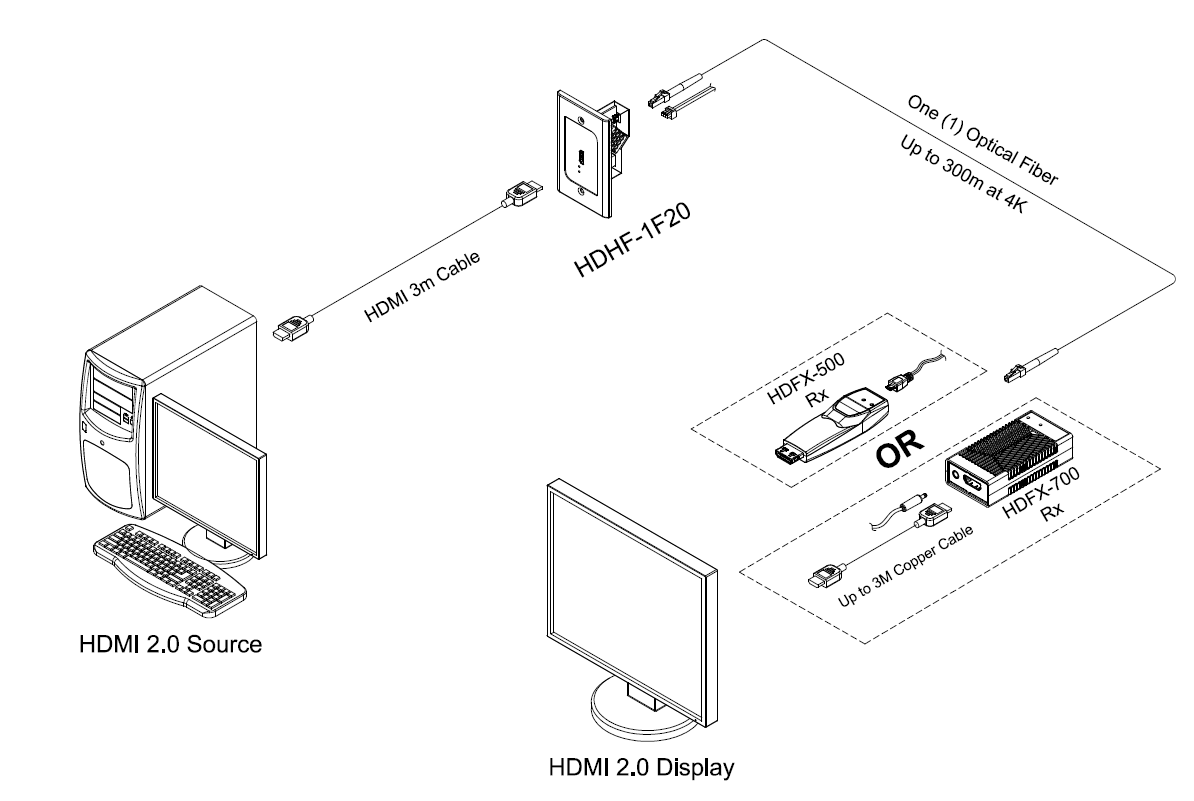

For flexible system design, the HDHF-1F20 works with two receiver configurations:

• HDFX-500-RX for direct connection to a display.
• HDFX-700-RX to extend an additional 3 m for complex installations.

The unit is HDCP 2.2 compliant, equipped with dual LED indicators for power and signal status, and includes a mini USB port for firmware updates, ensuring compatibility and easy maintenance over time.

• Transmits uncompressed HDMI 2.0 up to 300 m (984 ft) over one LC OM3 multimode fiber
• Supports 4K (4096 × 2160), WQUXGA @ 60 Hz, RGB & YCbCr 4:4:4
• Single-gang wall plate form factor for clean installation in AV and medical environments
• HDCP 2.2 compliant for secure content transmission
• Compatible with HDFX-500-RX and HDFX-700-RX receivers
• Includes mini USB port for firmware upgrades
• Dual LED indicators for power and HDMI signal status
