The HDFX-700-TR HDMI 2.0 Fiber Optic Extender with Copper Extension is a high-performance, detachable solution designed to transmit uncompressed 4K UHD (4096×2160) at 60Hz signals over distances up to 300 meters (984 feet) using a single LC multi-mode fiber (OM3). Utilizing Opticis’ cutting-edge optical technology, it ensures lossless HDMI 2.0 signal transmission with zero video or audio degradation, making it ideal for professional AV, broadcast, medical imaging, and control room environments.

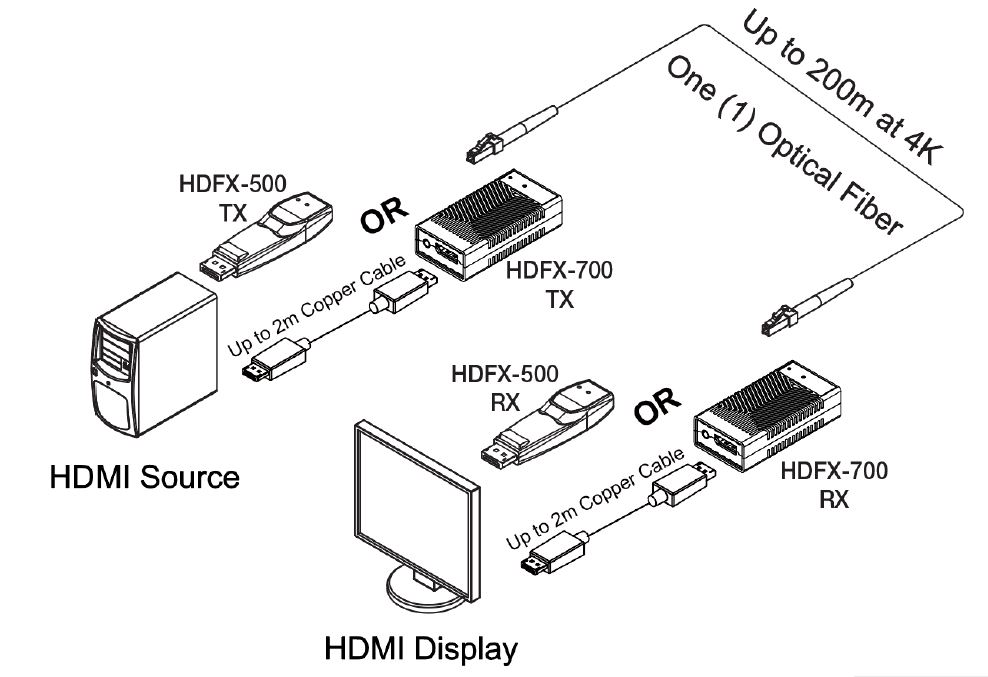

What sets the HDFX-700-TR apart is its hybrid connectivity—supporting up to 3 meters of copper extension on both TX and RX sides—making it suitable for tight installation spaces where small module-type extenders cannot be used. Included in the package are 2-meter copper cables for each end, providing plug-and-play convenience.
The extender offers firmware-selectable functionality, giving users two distinct modes:
-
ARC (Audio Return Channel) support up to 300 meters
-

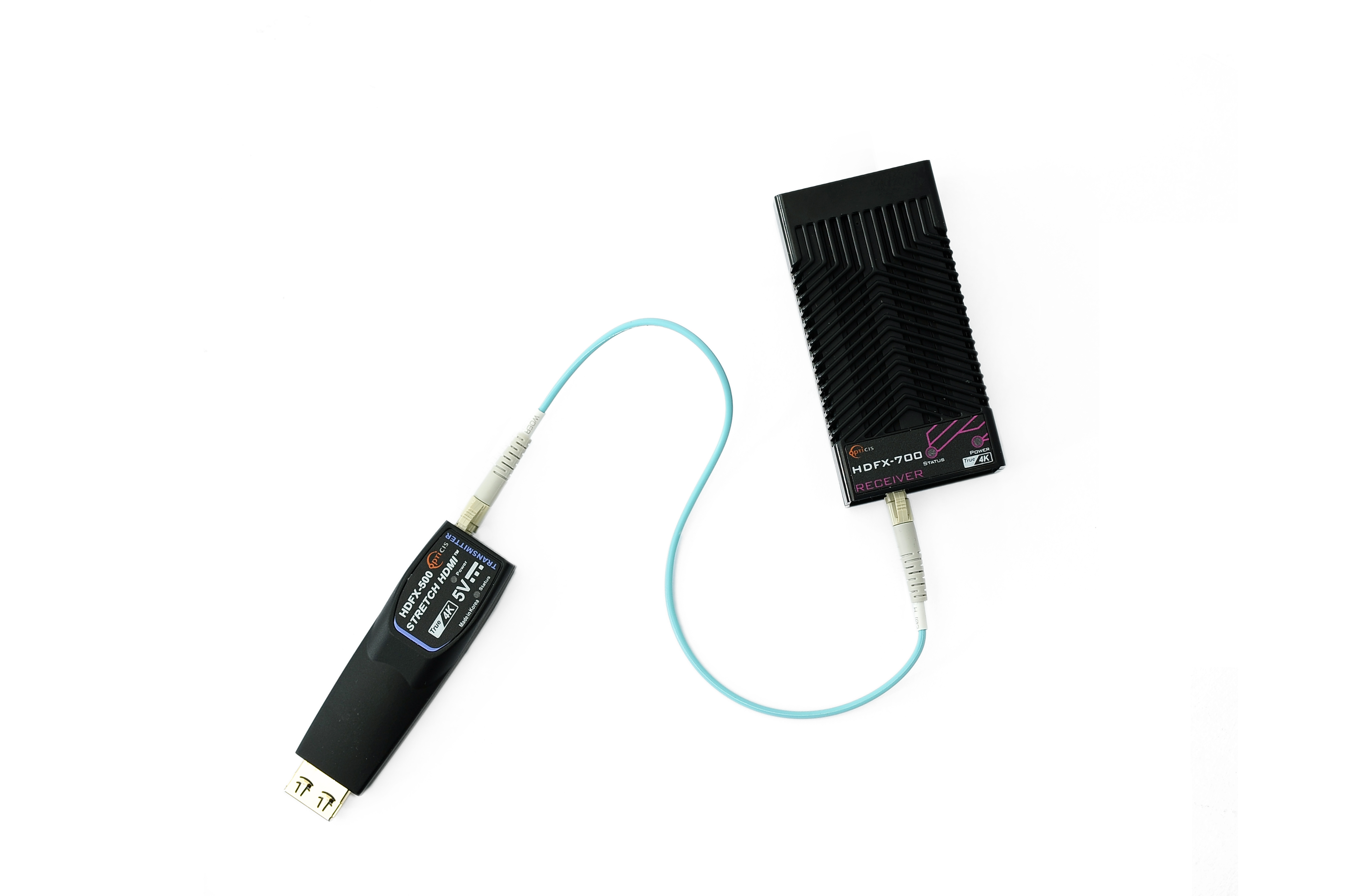

Full interoperability with the HDFX-500 extender, allowing mixed pairing between fiber-only and copper-extension modules.

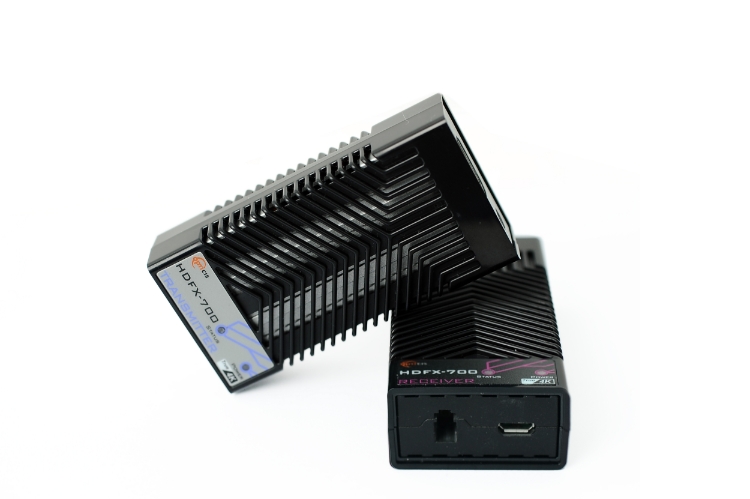

Its slim and compact design, combined with high retention HDMI connectors, ensures a secure physical connection, while advanced features such as HDR support (10-bit and 12-bit), EDID/CEC/HDCP 2.2/1.4 compliance, and firmware upgradability via micro USB add flexibility and future-proofing.
For larger-scale integration, the BR-400 Power Rack is available, allowing up to 8 units to be mounted and powered in a centralized setup.
