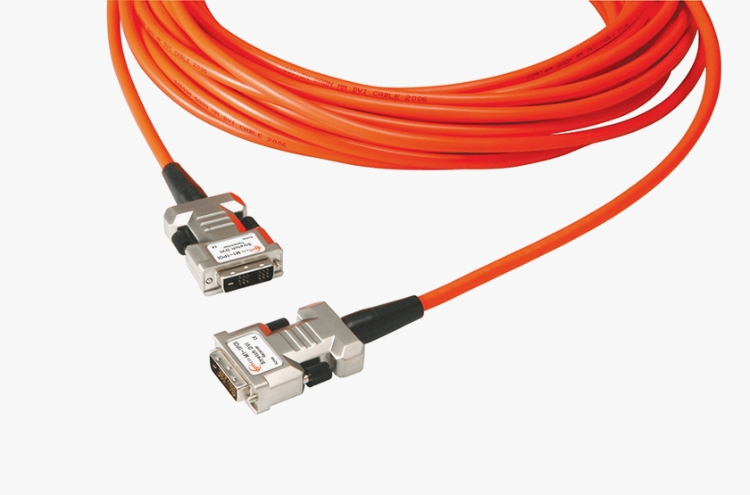

M1-1P0E DVI Hybrid Fiber-Copper Cable — Long Reach, 2K Resolution, Easy Installation

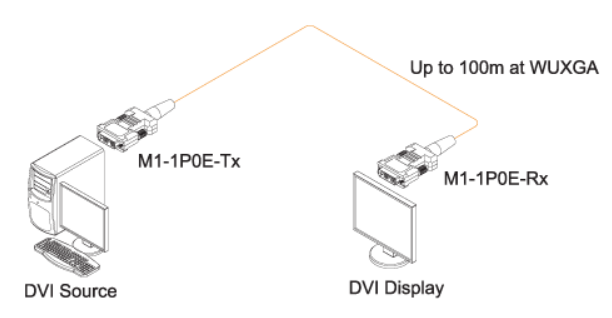

The M1-1P0E Point-to-Point DVI Hybrid Cable combines four multi-mode optical fibers for TMDS signal transmission with copper wires for DDC/HDCP, all within a single durable jacket. It delivers uncompressed 2K resolution at 60Hz, WUXGA (1920×1200) at 60Hz, or 1080p DVI signals over distances up to 100 meters (328 feet).

The cable is powered by a +5V DC supply, which can be connected to either the video source or display, and is included in the package for convenience.

• Compact design of end connector allows direct connection to the host video card and display

• Auto-power switching

• Adopts LSZH (Low Smoke Zero Halogen) & Halogen-Free Hybrid Cable

• Extends 2K resolution at 60Hz or WUXGA (1920x1200) at 60Hz, and 1080p DVI signal up to 100m (328feet)

• Supports bit rate up to 1.65Gbps/ch

• Operating temperature: 0 ~ 50℃

• Storage temperature: -30 ~ 70℃

• Input power: +5V 1A
