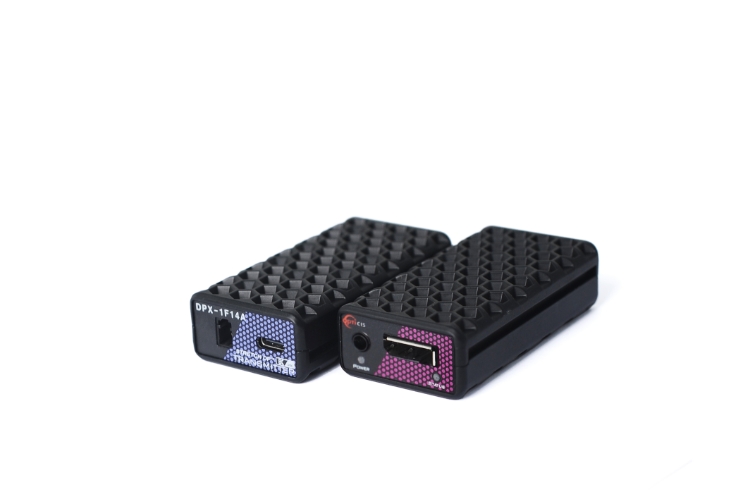

The DPX-1F14A-TR is a DisplayPort 1.4 one-fiber detachable optical extender with copper extension, engineered for high-performance 8K signal transmission over long distances. It supports 8K (7680 × 4320) at 60 Hz DSC and 4K at 144 Hz, extending signals up to 300 m (984 ft) using a single LC OM3 multimode fiber.

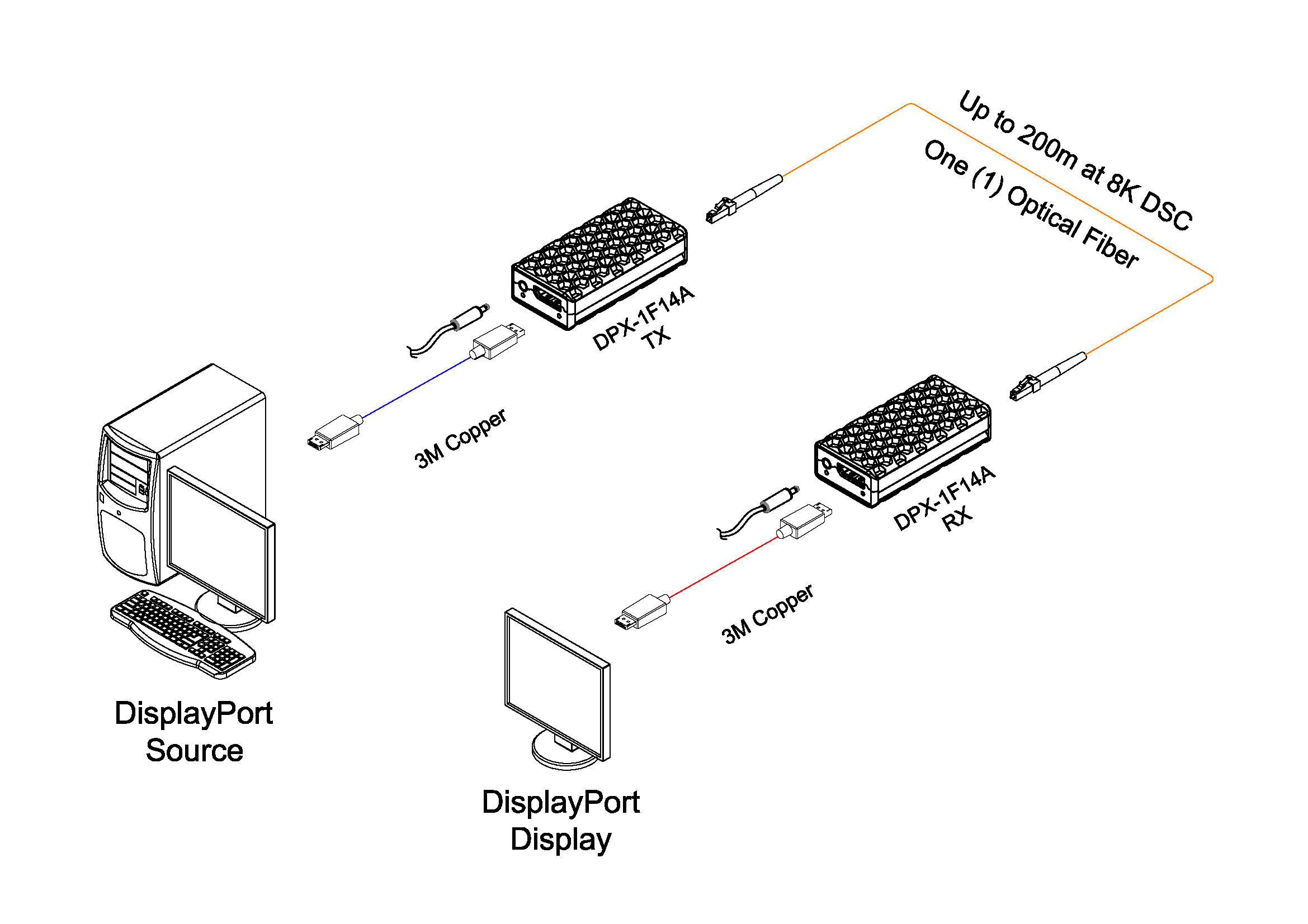

Leveraging Opticis’ cutting-edge optical technology, the DPX-1F14A-TR overcomes traditional installation limitations by offering up to 3 m copper extension on both the transmitter and receiver sides. This design allows flexible installation in confined spaces while reducing heat at the fiber endpoints.
A key innovation is the Smart Aux feature, which simplifies auxiliary channel communication management, enhancing system reliability and maintenance efficiency. Smart Aux automatically restores video settings and resolution after disconnections or power cycles, ensuring stable and uninterrupted performance.
With uncompressed and transparent signal transmission, high data rates of 32.4 Gbps (8.1 Gbps per lane), and USB Type-C firmware upgradability, the DPX-1F14A-TR is ideal for demanding applications such as broadcasting, control rooms, simulation environments, and medical imaging.
