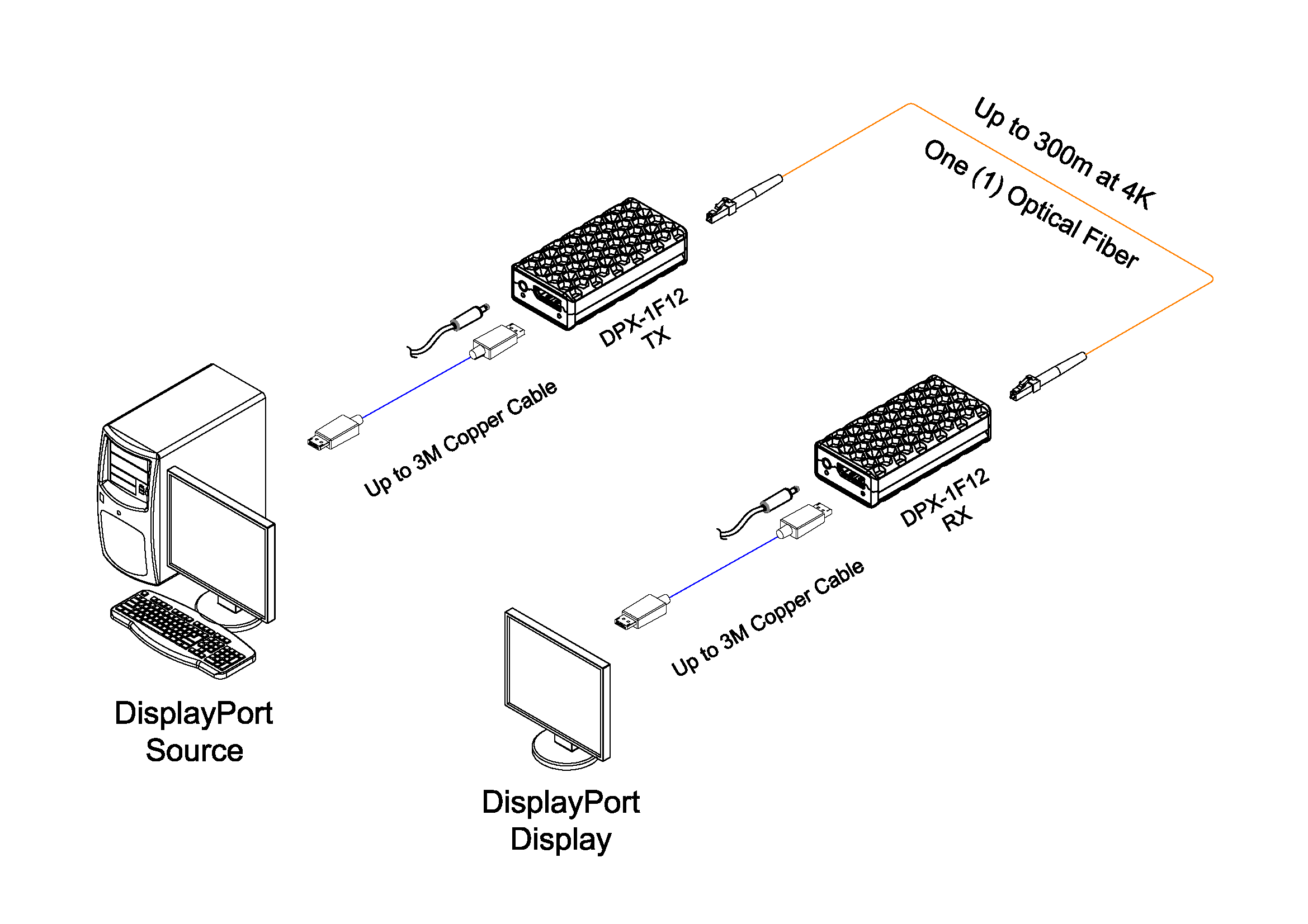

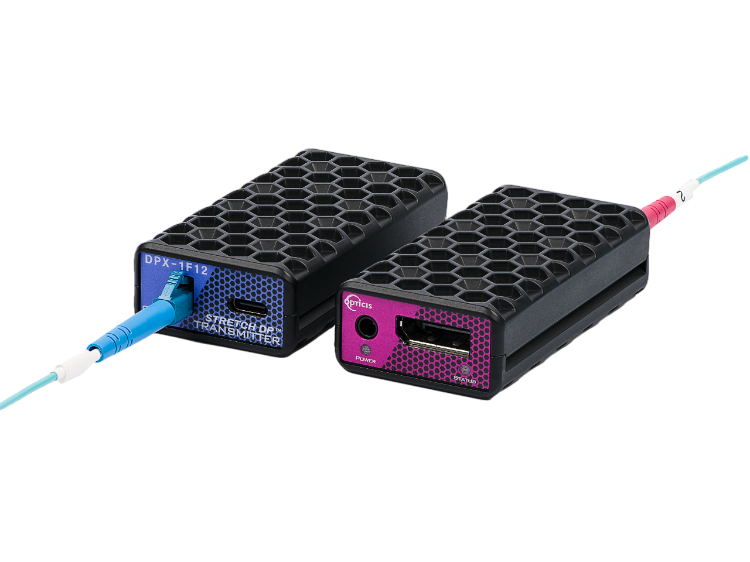

The DPX-1F12-TR is a high-performance DisplayPort 1.2 fiber optic extender designed for professional AV environments that demand uncompressed 4K video transmission over long distances. Supporting 4K (4096 × 2160) at 60 Hz, it delivers transparent video and audio signals up to 300 m (984 ft) using a single LC OM3 multimode fiber.
For added installation flexibility, the system includes 3 m copper extensions on both the transmitter and receiver sides. It fully supports DisplayPort 1.2 standards, including MST (Multi-Stream Transport), ensuring compatibility with a wide range of high-resolution display setups.
When connected to the BR-600 Power Rack, the DPX-1F12-TR’s integrated Diagnosis function enables remote monitoring, real-time error detection, and centralized device management, minimizing downtime and simplifying maintenance.
Combining robust performance, advanced diagnostic capabilities, and versatile extension options, the DPX-1F12-TR is ideally suited for broadcast, control rooms, simulation environments, corporate AV, and medical imaging applications.
