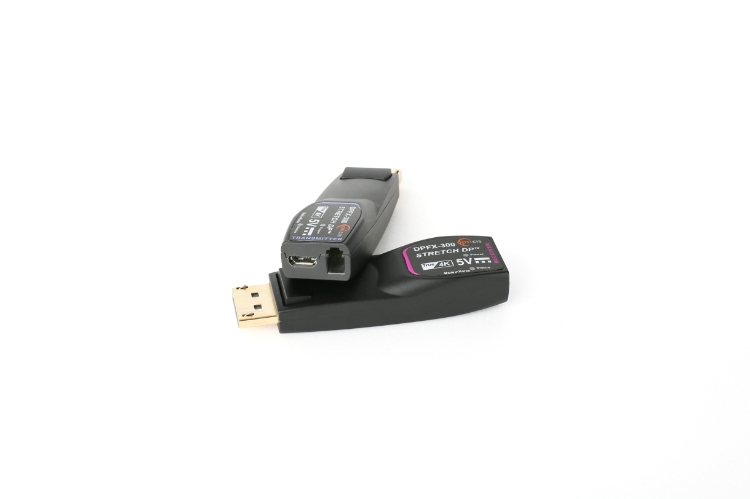

The DPFX-300-TR DisplayPort 1.2 Optical Extender from Opticis transmits uncompressed 4K UHD (4096×2160) at 60Hz signals over distances up to 300 meters (984 feet) via a single LC multi-mode fiber (OM3). Leveraging Opticis' cutting-edge optical technology, the extender ensures flawless video and audio performance with zero degradation or interference.

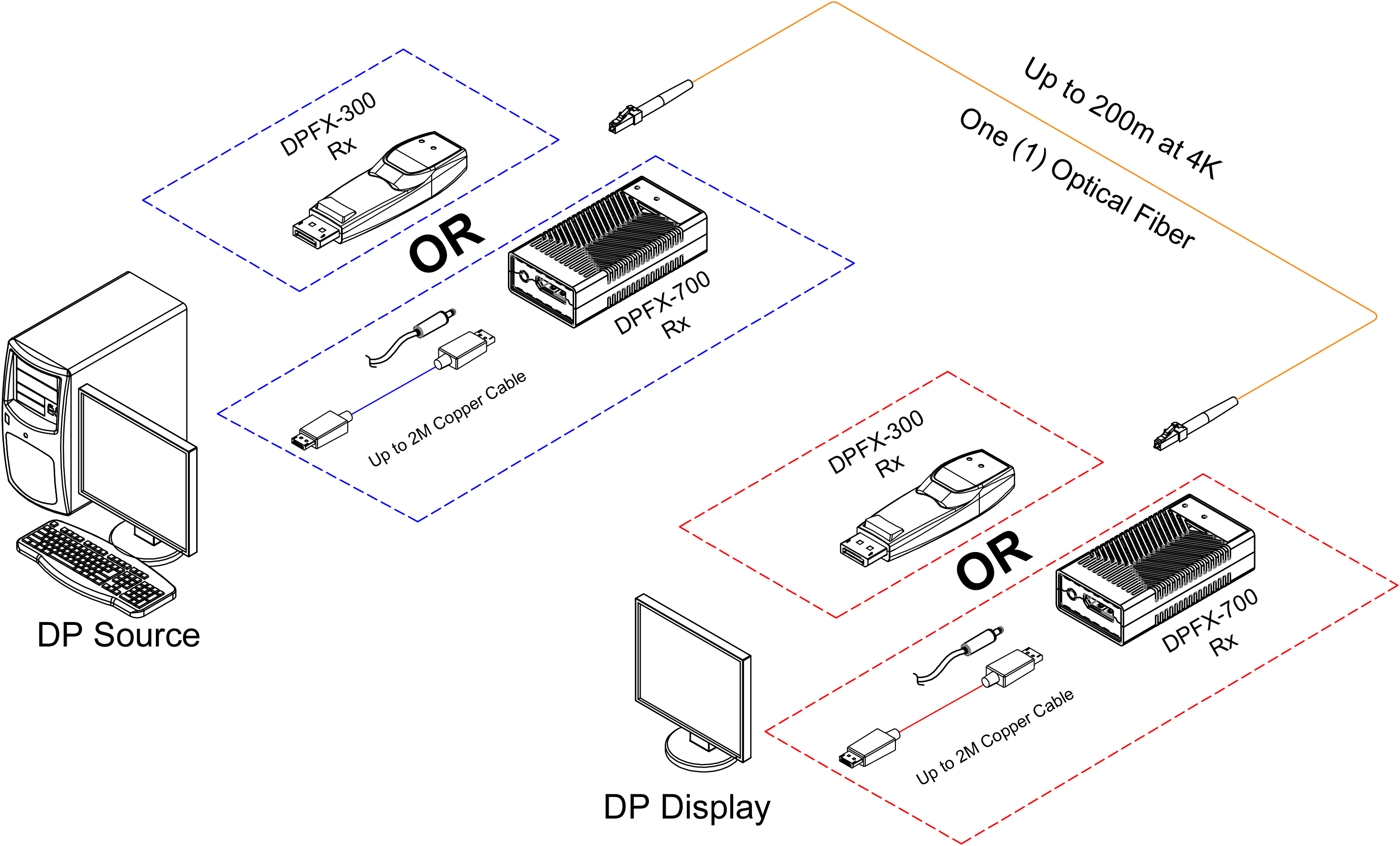

Compact and lightweight, the DPFX-300-TR is ideal for space-constrained or high-interference environments. Its pure fiber link between the transmitter (DPFX-300-TX) and receiver (DPFX-300-RX) ensures electrical isolation and EMI-free signal transmission, enabling a clean, secure, and straightforward installation.
The extender operates via USB power—no external adapter required—using the included micro-USB to USB cable, allowing direct power from source or display devices.
Engineered for high performance and ease of use, the DPFX-300-TR supports a full range of DisplayPort 1.2 features, including:
-
Total data rate of 21.6 Gbps (5.4 Gbps per lane)
-
Dual-mode DisplayPort (DP++)
-
Auxiliary and I²C channel support over fiber
-
Multi-Stream Transport (MST)
-
Plug-and-play functionality with auto power switching
-
Interoperability with DPFX-700-TR as an optional configuration
-
Certified to FCC and CE standards for EMI/RFI emissions
The DPFX-300-TR offers a reliable, high-bandwidth extension solution with exceptional signal integrity for professional AV, broadcast, control room, and medical imaging applications.
