DPFC-200D DisplayPort 1.2 Active Optical Cable — 4K 60Hz, up to 100m, Uncompressed

The DPFC-200D Detachable DisplayPort 1.2 Active Optical Cable delivers uncompressed 4K (4096×2160) at 60Hz signals over distances up to 100 meters (328 feet) using a plenum-rated and LSZH hybrid cable. By transmitting without scaling or data compression, it ensures pristine image quality and minimizes transmission load.

Engineered with a compact design, the DPFC-200D fits seamlessly into diverse installation environments while delivering cutting-edge performance.

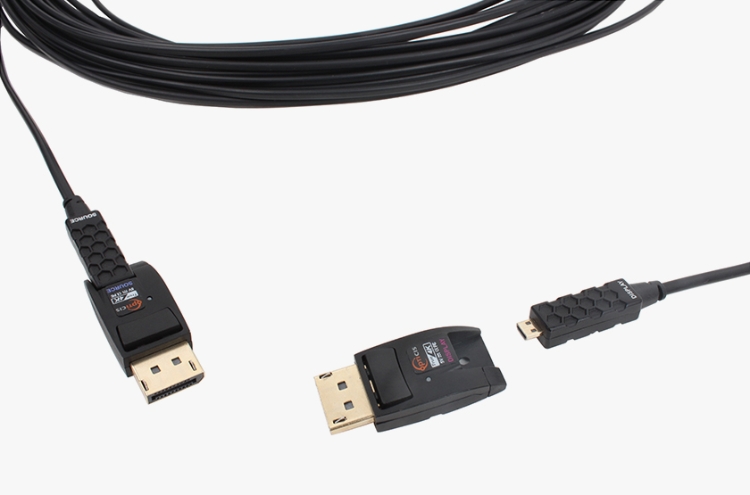

For maximum installation flexibility, the DPFC-200D separates the DisplayPort connector module from the Active Optical Cable, providing a slim, lightweight, and easy-to-install solution comparable to a standard copper DisplayPort cable.

An optional USB power cable for the receiver (RX) side is available upon request for non-standard displays that do not supply sufficient power.

• Extends up to 4K (4096x2160) at 60Hz, (RGB & YCbCr : 4:4:4)

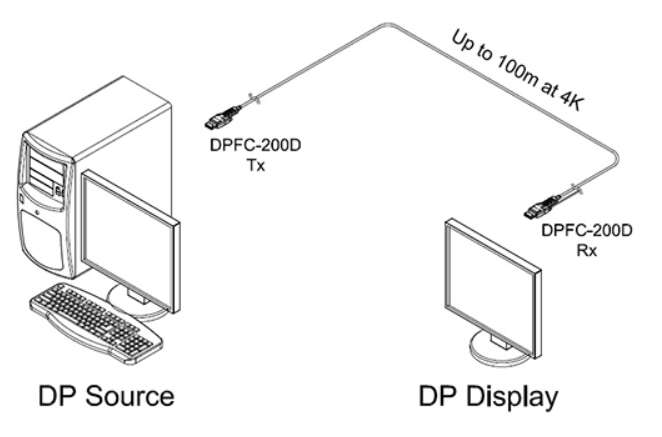

• Transmits DisplayPort 1.2 data up to 100m (328feet) over hybrid cable

• Adopts plenum graded or (LSZH - Low Smoke Zero Halogen) hybrid cable

• Offers perfect flexibility during installation by separating DisplayPort connector from cable

• Supports Multi-Stream Transport feature

• Supports 3D contents transmission

• Supports DisplayPort 1.2 standards feature

• Provides optional USB power on the display source (TX) and/or display (RX) side
