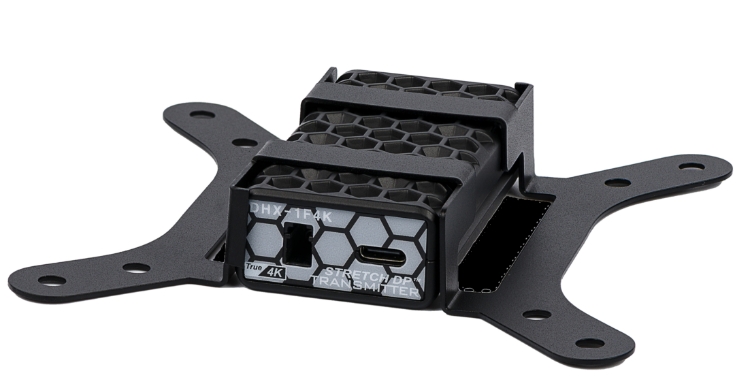

The DHX-1F4K is a DisplayPort 1.2 to HDMI 2.0 optical extender engineered to deliver uncompressed 4K (4096 × 2160) at 60 Hz video signals over long distances with exceptional clarity. Supporting transmission up to 300 m (984 ft) over a single LC OM3 multimode fiber, it provides a seamless, high-performance solution for converting and extending DisplayPort signals to HDMI displays.

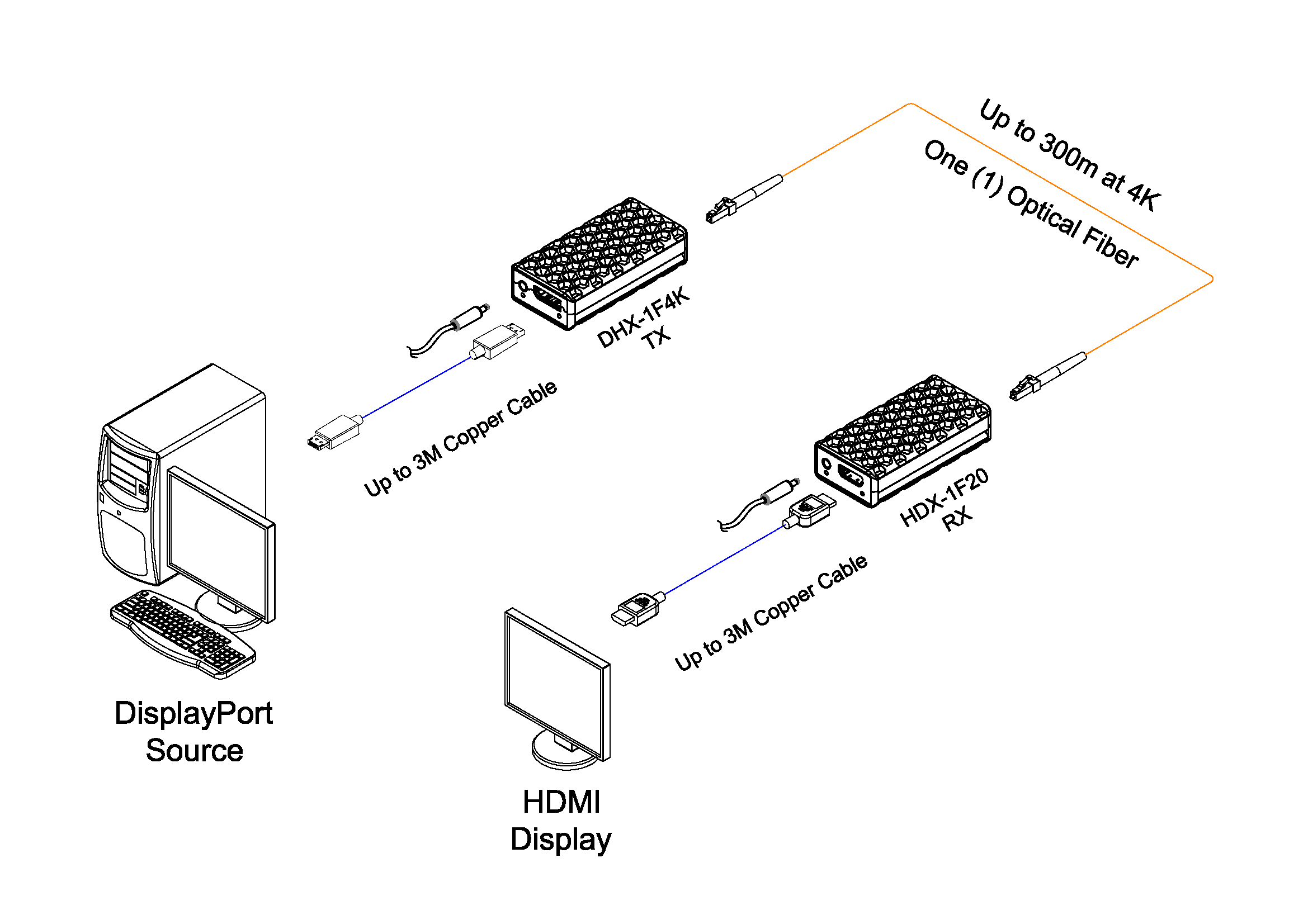

The extender includes 3 m copper extensions on both the transmitter and receiver sides for flexible installation in professional AV environments. When paired with the HDX-1F20-RX receiver, the DHX-1F4K ensures reliable, uncompressed 4K video delivery with full signal transparency.
Connecting the system to the BR-600 Power Rack enables the use of its built-in Diagnosis function, offering remote monitoring, real-time error detection, and centralized management, minimizing downtime and simplifying maintenance.
Combining signal conversion, long-distance optical transmission, and advanced diagnostics, the DHX-1F4K is ideal for demanding AV applications including broadcasting, control rooms, corporate AV, and medical imaging.
