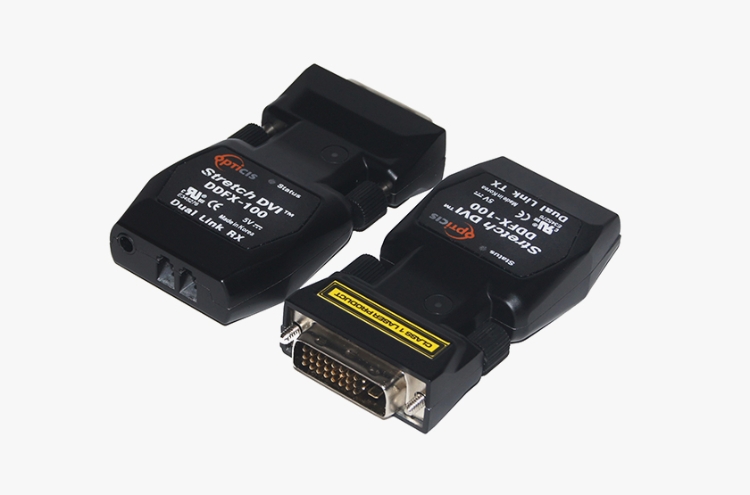

The DDFX-100-TR Detachable Dual-Link DVI Extender integrates effortlessly into existing systems with minimal effort and no modifications. Its compact form factor and full compatibility with industry-standard connectors ensure simple installation, while its rugged metallic die-cast enclosure delivers reliable performance, superior EMI shielding, and effective heat dissipation — even in challenging environments.

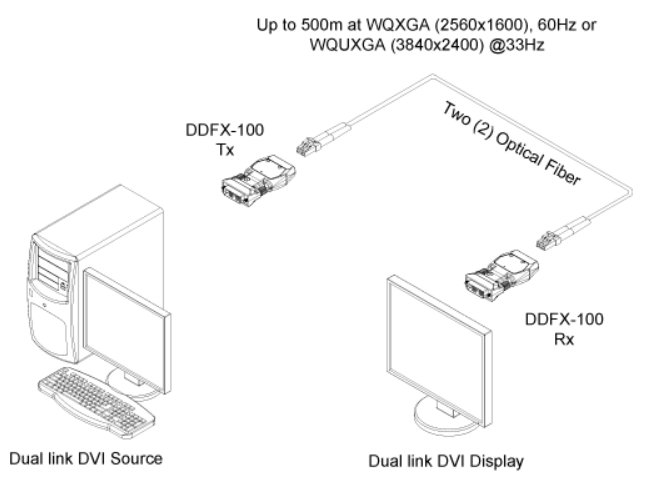

Utilizing advanced fiber-optic technology, the DDFX-100-TR transmits uncompressed WQXGA (2560×1600) at 60Hz or WQUXGA (3840×2400) at 33Hz refresh rate Dual-Link DVI signals over distances up to 500 meters (1,640 feet) using two LC multi-mode fibers.
The innovative Self-EDID management feature allows the extender to automatically read and restore display EDID information simply by plugging the transmitter module into the display. This simplifies installation and offers maximum flexibility when working with variable-resolution display systems.
The DDFX-100-TR is fully certified for a range of professional applications, meeting FCC and CE standards.
